Description

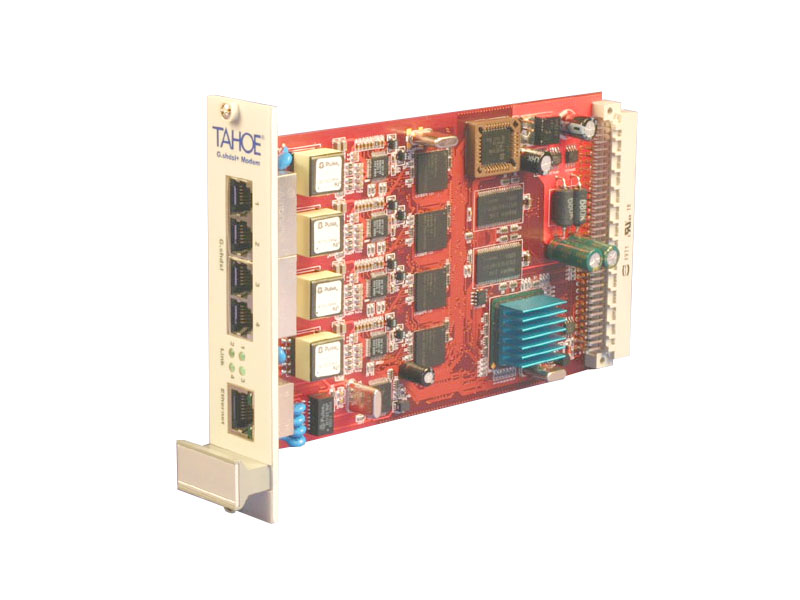

Tahoe 4681 is a four-port card with G.shdsl+ modems for the Tahoe DSLAM concentrator. Functionally it corresponds to the Tahoe 684 modem in a 19" rack-mount version.
Data rate
Each port delivers up to 5.7 Mbps over a distance of several kilometres. The ports can be bonded, up to 22.8 Mbps in a single stream on four pairs.
Features
At the other end of the line there can be four Tahoe 681 modems, two Tahoe 682 or one Tahoe 684. Traffic from the individual ports goes to the shared Ethernet port in a single stream or separated into VLANs: the DSL ports as untagged, the Ethernet port as tagged, with an external switch separating the traffic from the individual lines.
Technical data
| Throughput |
| |
|---|---|---|
| Standards | G.shdsl, conforms to ITU G.991.2 | |
| Interface | Ethernet 10/100 Base-T | |
| Modulation | TCPAM-32
| |
| Features |
| |
| Processor | Freescale PowerPC 100MHz | |
| Memory | 4MB SDRAM | |
| Performance | up to 15,000 packets per second | |
| Network protocols | TCP, IP, UDP, ICMP, TFTP, SNMP, DHCP, BOOTP, PPP, Frame Relay, HDLC, Cisco® HDLC, IEEE 802.1q | |
| WAN encapsulation | ATM AAL5 | |
| Dimensions | 30 mm (width) x 128 mm (height) x 185 mm (depth) | |
| Weight | 190 g | |
Reach
Values below were measured on a test line of 0.5mm wire diameter. They depend on an actual line and thus are not guaranteed. They may be different - higher or lower - in an individual case.
| Throughput | Reach on 8 wires | Reach on 4 wires | Reach on 2 wires |
|---|---|---|---|
| 22784 kbps | 2500 m | - | - |
| 16896 kbps | 2900 m | - | - |
| 14336 kbps | 3200 m | - | - |
| 11392 kbps | 3600 m | 2500 m | - |
| 6272 kbps | 4200 m | 3500 m | - |
| 5696 kbps | 4700 m | 3600 m | 2500 m |
| 3072 kbps | 5900 m | 4100 m | 3500 m |
| 2048 kbps | 6900 m | 5000 m | 3900 m |
| 1024 kbps | 7500 m | 6900 m | 5000 m |
