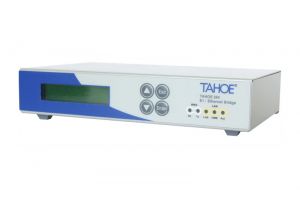

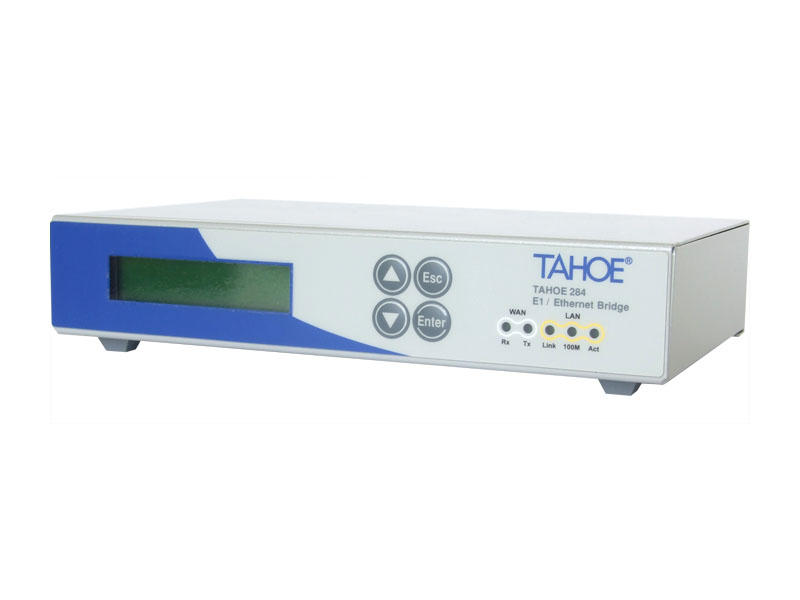

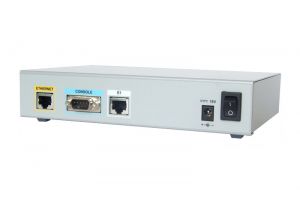

  Tahoe 284
   G.703/Ethernet interface converter

pdf Datasheet

pdf User manual



 founAsk for price

Description


G.703/FastEthernet Framed and Managed Converter

Tahoe 284 allows connecting two LANs through an E1 line using only selected timeslots.

tahoe284pl

Ease of use
h-1

Works as a transparent bridge and may be an economical alternative to a fully featured router in applications, where telnet/SNMP management or traffic control is not necessary. Nevertheless management is still possible using serial console or built-in LCD and keyboard.

Featuresh-1
G.703 interface works in unframed or framed mode. In the latter case any combination of timeslots may be used and throughput ranging from 64 to 1984 kbps may be achieved. In the unframed mode user has access to whole 2048 kbps stream.


Technical data

  Throughput  64-2048 kbps
  WAN interface
  • G.703
  • framed or unframed
  • balanced 120 ohm
  • HDB3 coding
  • CRC4 support
  • transmission using any combination of timeslots
  LAN interface
  • Ethernet 10/100 Base-T
  • 802.1q VLAN support
  Features
  • management using built-in LCD and keyboard
    management using RS232 serial console
    manual or automatic 10/100 Base-T link negotiation
    G.703 link state monitoring
    WAN and LAN activity LEDs
    test loopbacks
    inside temperature measurement
  Processor  Freescale PowerPC 50 MHz
  Memory  8MB SDRAM
  G.703 port range
 up to 2000m (-43 dB sensitivity)
  WAN protocol
 HDLC
  Dimensions  200 mm (width) x 130 mm (depth) x 45 mm (height)
  Power supply
 15V/400mA (100-240V, 50-60Hz power supply included)

zarzÄ…dzanie przy pomocy wbudowanego
