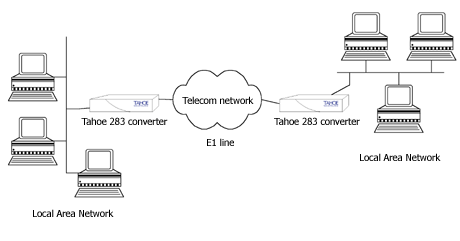

Tahoe 283 allows connecting two LANs using an E1 line - without any initial configuration.
Ease of use Works as a transparent bridge and may be an economical alternative to a fully featured router in applications, where remote management or traffic control is not necessary.
G.703 interface works in unframed mode - user has access to whole 2048 kbps stream.
Technical data
Throughput
2048 kbps
WAN interface
G.703
unframed
balanced 120 ohm
HDB3 coding
LAN interface
Ethernet 10/100 Base-T
802.1q VLAN support
Features
G.703 link state LED
LAN and WAN activity LEDs
Processor
Freescale PowerPC 50 MHz
Memory
8MB SDRAM
Portu G.703 range
up to 2000m (-43 dB sensitivity)
WAN protocol
HDLC
Dimensions
200 mm (width) x 130 mm (length) x 45 mm (height)
Power supply
15V/400mA (100-240V/50-60Hz external power supply included)
Datasheet
