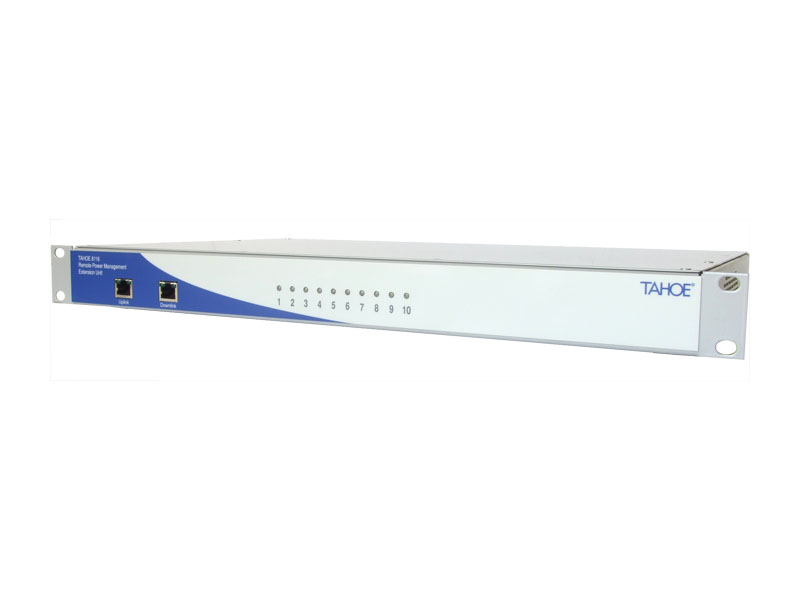

Tahoe 8116 is a cost-effective solution to extend the number of available power outlets of Tahoe 8216 Remote Power Management System.
Versatility Each extension unit contains 10 additional sockets. Up to 32 extension units can be connected to one Tahoe 8216. Whole stack of Tahoe 8216 and Tahoe 8116 devices is controlled by the main Tahoe 8216 unit.
Functionality
Each unit monitors input line voltage, current and power. Maximum total output current is 16A.
Technical data
Features

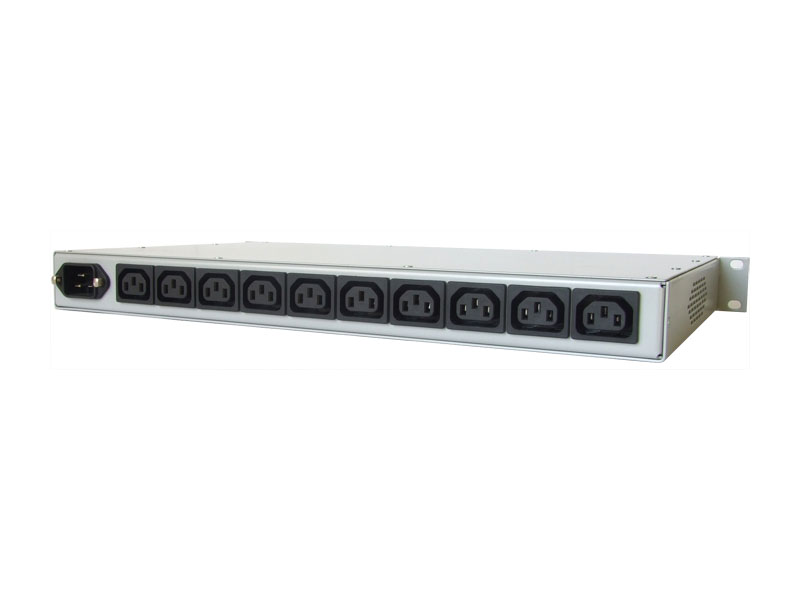

10 independently controllable outlets (switching on and off)
1U high, 19" wide
access through the main Tahoe 8216 unit in the stack
voltage, current and active power monitoring
Maximum output current
10A (per outlet)
Maximum aggregated current
16A
Dimensions
483 mm (width) x 44 mm (height, 1U) x 291 mm (depth)
Datasheet
