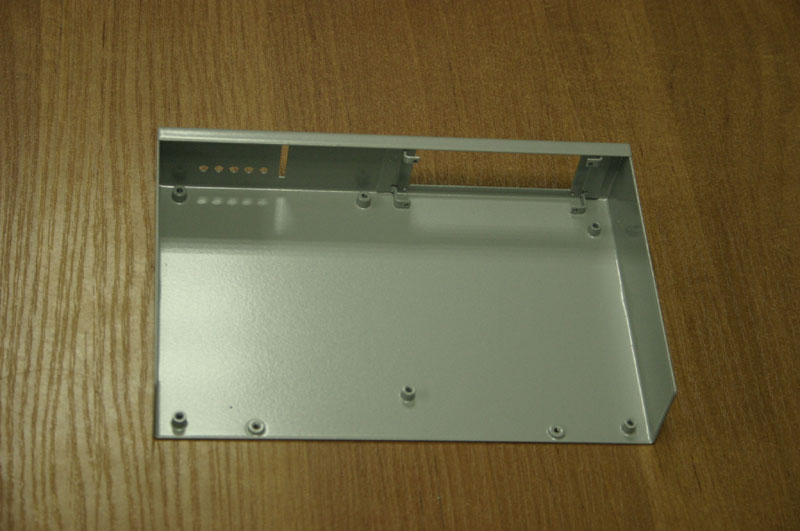

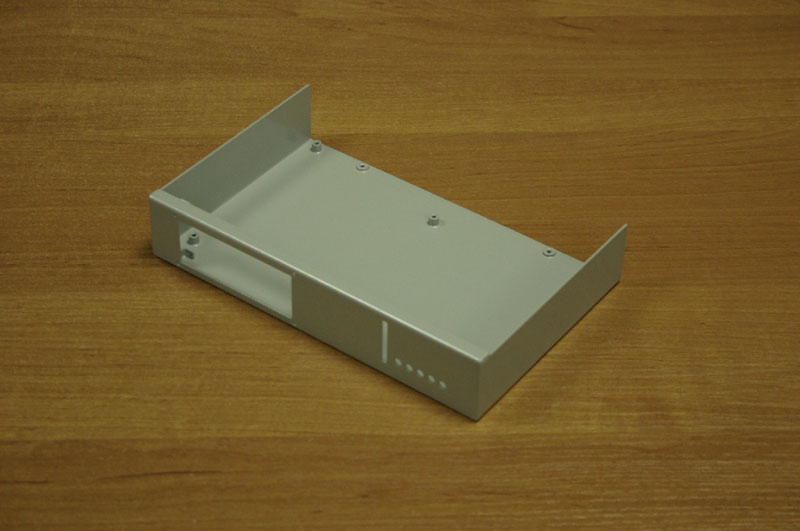

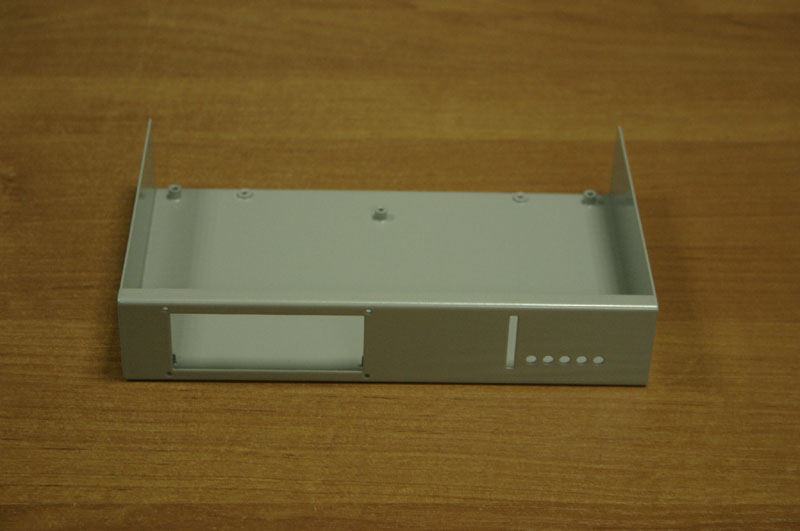

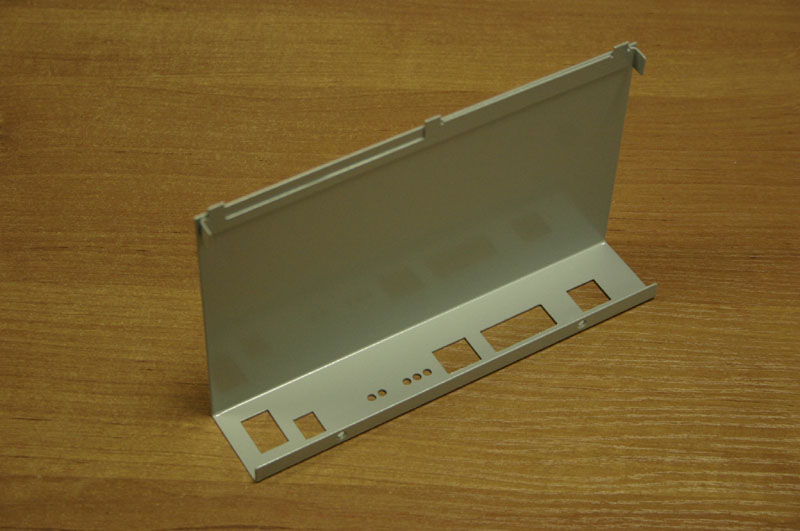

The bottom element is universal for different types of devices (for example there are 5 holes for LEDs which are currently unused). The element should include:
Note: The lacquer on these photos is not mat, as it should be (so it is glossy)

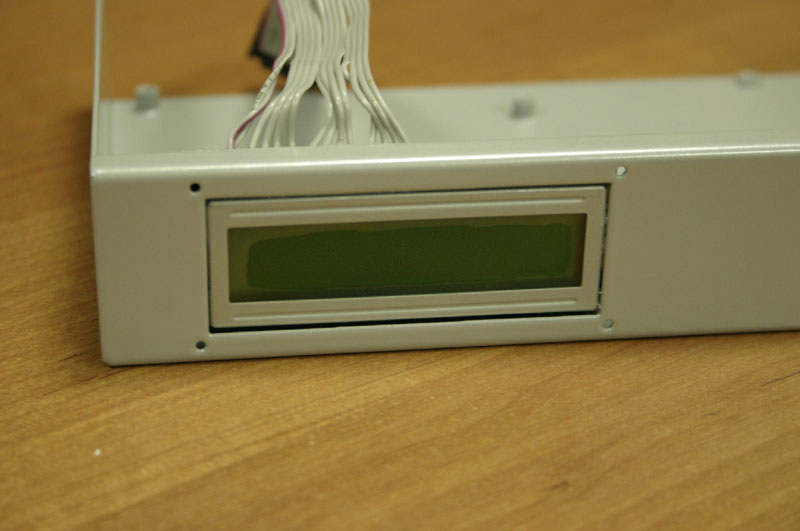

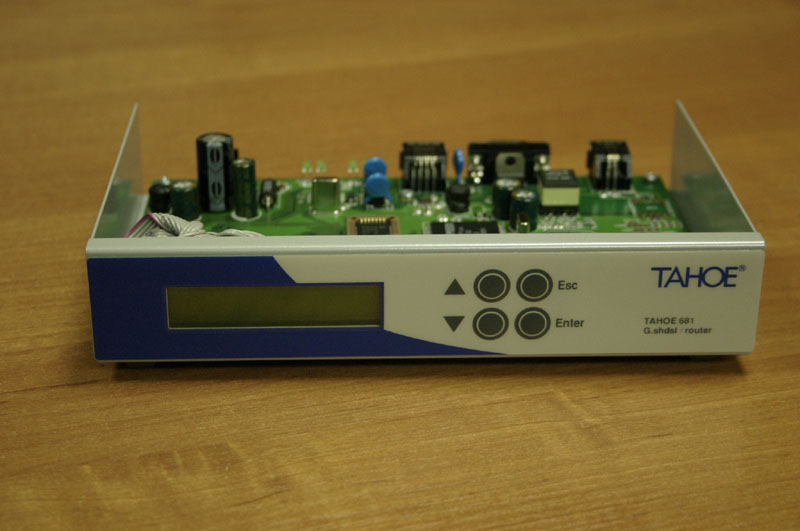

The mounted LCD looks as follows:

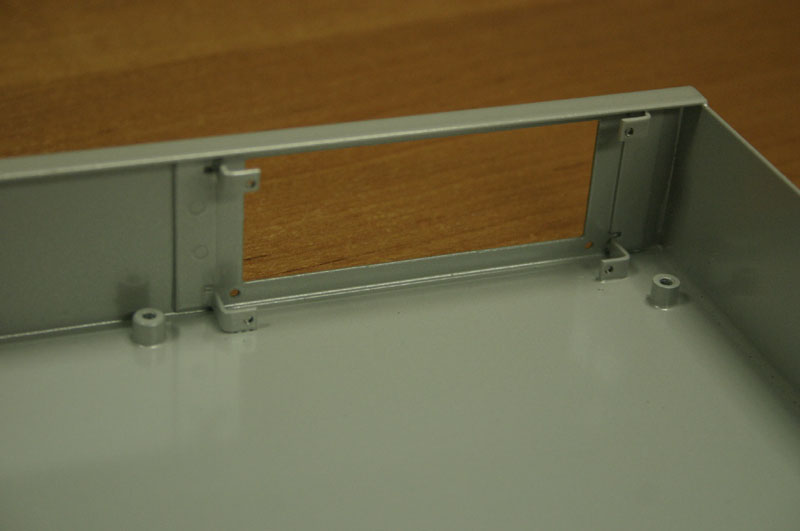

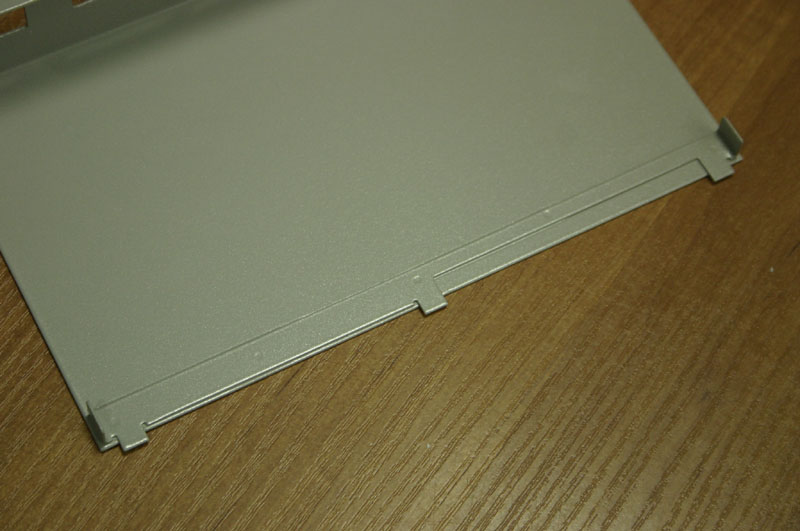

These three fingers touching the bottom part don't have to be
designed in the same way. It's just a design of our current manufacturer.

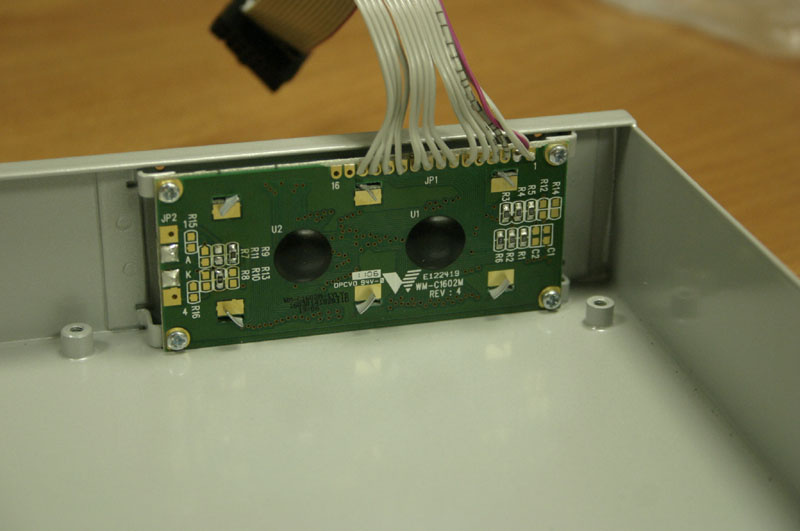

Please note a cut-out on the right - the LCD almost touches the top cover.
The bents on the sides prevent cover from falling inside the enclosure.
LCD mounting

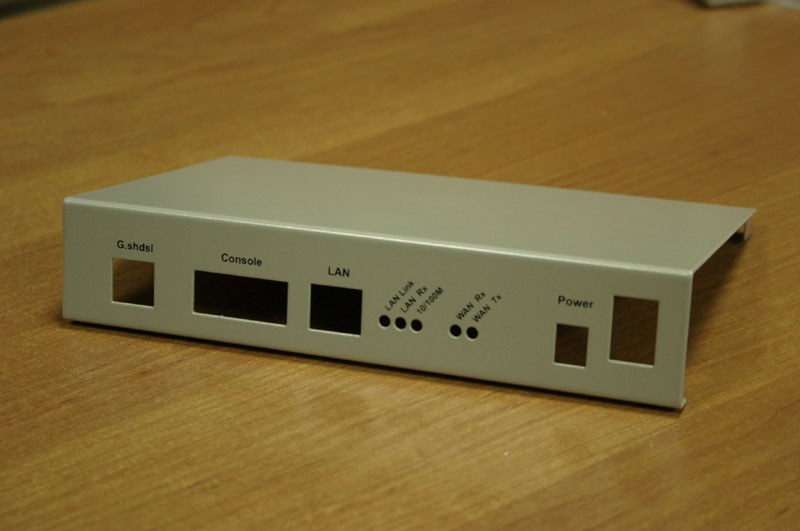

Top cover
The top conver differs from model to model, but now we need just one type. It has:
